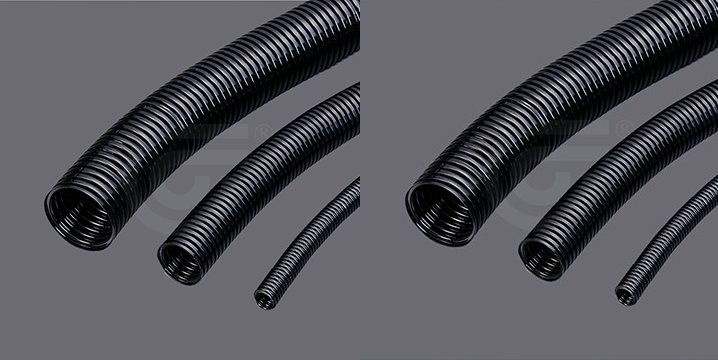

Flexibility conduits designed to reduce the chance of installation damage and protect valuable wiring circuits.
.Applicable to electrical, machinery, and building harness wiring.
.Flexibility for installation while providing protection to cables
.Fluid resistance
Material : PE,UL Approved Polyamide 6, UL94V-2,PP
Color : Black
Type : Open ,Non-Open
Part No. | Nomial dimension mm |
Nomial dimension inch |
A (I.D) mm |
B (I.D) mm |
C mm | D inch | E mm | F mm |
NFC-07 | 6.35 | 1/4” | 6.8±0.4 | 10.0±0.4 | 2.72 | 0.6 | 0.3 | 1.52 |
NFC-10 | 7.97 | 5/16” | 9.6±0.4 | 13.0±0.4 | 2.93 | 0.6 | 0.3 | 1.73 |
NFC-12 | 9.53 | 3/8” | 12.0±0.4 | 15.8±0.4 | 3.18 | 0.7 | 0.3 | 1.88 |
NFC-17 | 12.7 | 1/2” | 16.2±0.4 | 21.2±0.4 | 3.46 | 0.6 | 0.4 | 2.05 |
NFC-23 | 19.05 | 3/4” | 21.9±0.4 | 28.5±0.4 | 4.76 | 0.8 | 0.5 | 3.01 |
NFC-28 | 25.4 | 1” | 27.6±0.4 | 34.5±0.4 | 4.76 | 0.9 | 0.6 | 2.71 |
NFC-36 | 31.75 | 1-1/4” | 36.0±0.4 | 42.5±0.4 | 6.35 | 1.2 | 0.8 | 3.70 |
NFC-48 | 50.8 | 2” | 47.0±0.4 | 54.5±0.4 | 6.35 | 1.1 | 0.8 | 3.75 |
