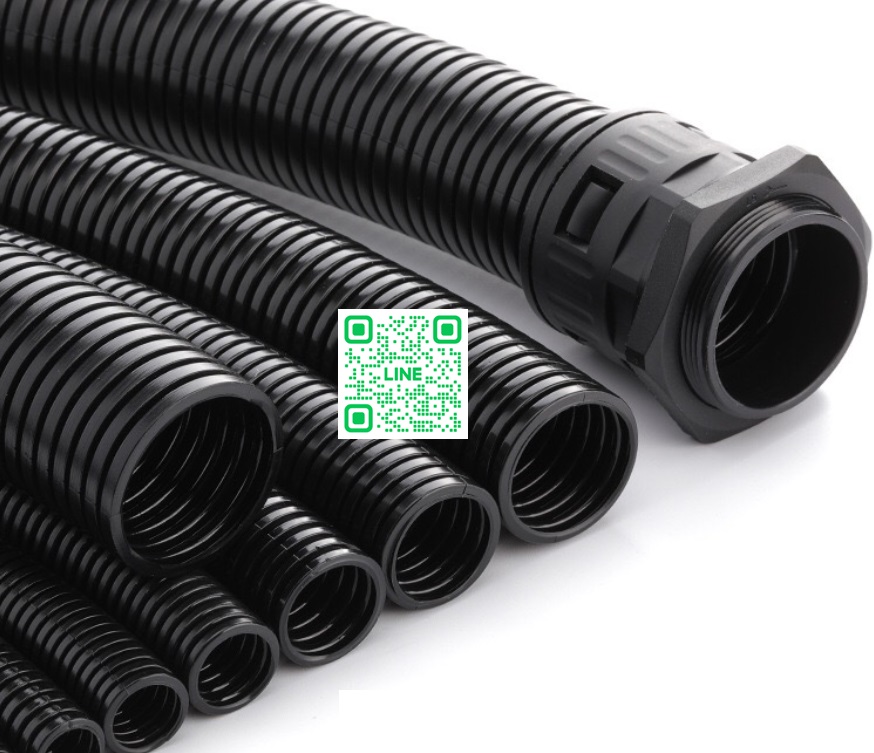

LNE-PE PE Flexible Conduit
Product material: PE (polyethylene)
Working temperature:-30℃~+110℃, instantaneously can be +130℃
Certification: RoHS
Structure: corrugated both inner & outer
Flame Retardant Rating: FV-0
Color: Black. Other colors are customizable upon requirements(split available.
Property:Good flexibility,glossy surface,chemical resistance
Applications ::Widely applied in the industries like Robots & automation,new energy automobile,aviation,train & metro,railway traffic equipment,marine vessel,electrical power generation,chemical industry,mechanical arms & equipment,illuminating equipment and electrical insulating protection,etc. Adaptive for both dynamic & static environment,especially with requirement of flame retardant.
How to use: Insert the wires or cables into the conduit and match with the suited connectors such as LNE-SM-G ,SM or SM-F series

NO. |
Flexible Conduit |
Diameter (mm.) |
Radius (mm.) |
Packaging Unit |
LNE-PE-10.0 |
AD10.0 1/4" |
6.5x10.0 |
16 |
100 |
LNE-PE-11.6 |
AD11.6 |
8.0x11.6 |
16 |
100 |
LNE-PE-13.0 |
AD13.0 5/16" |
10.0x13.0 |
20 |
100 |
LNE-PE-15.8 |
AD15.8 3/8" |
12.0x15.8 |
30 |
100 |
LNE-PE-18.5 |
AD18.5 |
14.3x18.5 |
40 |
100 |
LNE-PE-21.2 |
AD21.2 1/2" |
17.0x21.2 |
45 |
100 |
LNE-PE-25.0 |
AD25.0 |
20.0x25.0 |
45 |
50 |
LNE-PE-28.5 |
AD28.5 3/4" |
23.0x28.5 |
50 |
50 |
LNE-PE-32.0 |
AD32.0 |
26.0x32.0 |
55 |
50 |
LNE-PE-34.5 |
AD34.5 1" |
29.0x34.5 |
60 |
50 |
LNE-PE-42.5 |
AD42.5 1 1/4" |
36.0x42.5 |
70 |
50 |
LNE-PE-54.5 |
AD54.5 2" |
48.0x54.5 |
90 |
25 |
LNE-PE-74.0 |
AD74.0 2 1/2" |
63.0x74.0 |
130 |
20 |
LNE-PE-88.0 |
AD88.0 3" |
76.0x88.0 |
170 |
20 |
LNE-PE-108.0 |
AD108.0 4" |
94.0x108.0 |
225 |
20 |
